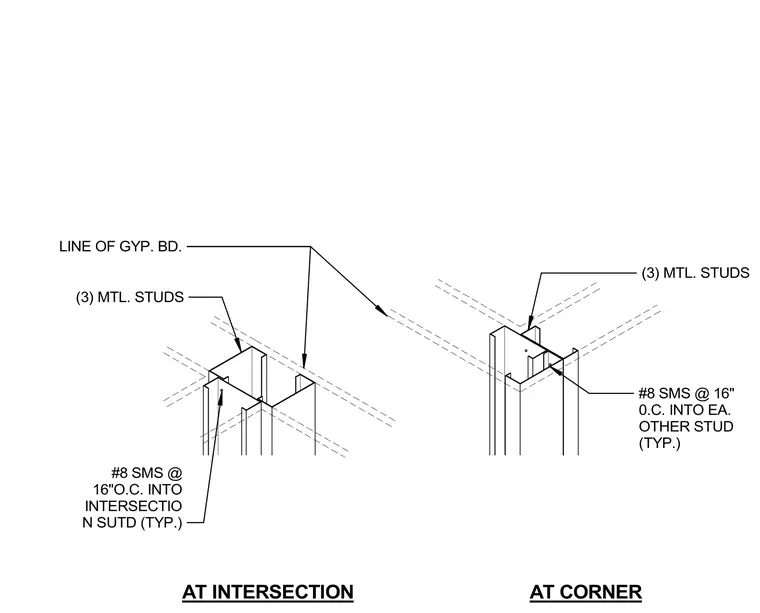

Three metal studs form the intersection and corner framing, faced with a line of gypsum board on each side. Number eight sheet metal screws spaced at sixteen inches on center fasten the framing into each other stud typically. At the intersection, fasteners secure the assembly into the intersecting stud at sixteen inches on center typically.
#8 SMS @ 16"O.C. INTO INTERSECTIO N SUTD (TYP.) (3) MTL. STUDS LINE OF GYP. BD. (3) MTL. STUDS #8 SMS @ 16" 0.C. INTO EA. OTHER STUD (TYP.) AT INTERSECTION AT CORNER
