A structural ceiling grid assembly connects to a vertical suspension rod using a three-eighths-inch-16 right-hand threaded connection and a field connector. The main runner structural tee features a three-eighths-inch bottom slot profile and is secured with fastening screws. A turnbuckle connector links the upper suspension to the threaded rod assembly above the ceiling plane.

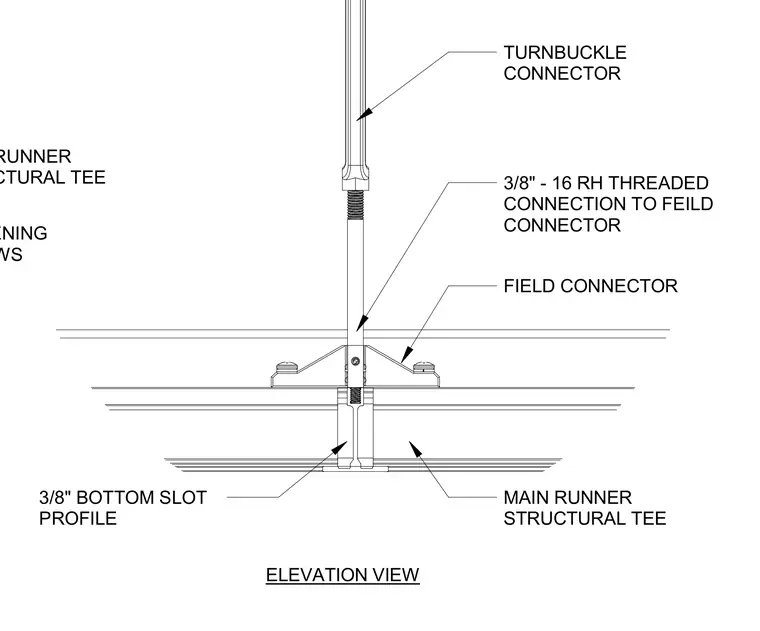

ELEVATION VIEW 3/8" - 16 RH THREADED CONNECTION TO FEILD CONNECTOR TURNBUCKLE CONNECTOR MAIN RUNNER STRUCTURAL TEE FASTENING SCREWS FIELD CONNECTOR MAIN RUNNER STRUCTURAL TEE 3/8" BOTTOM SLOT PROFILE
