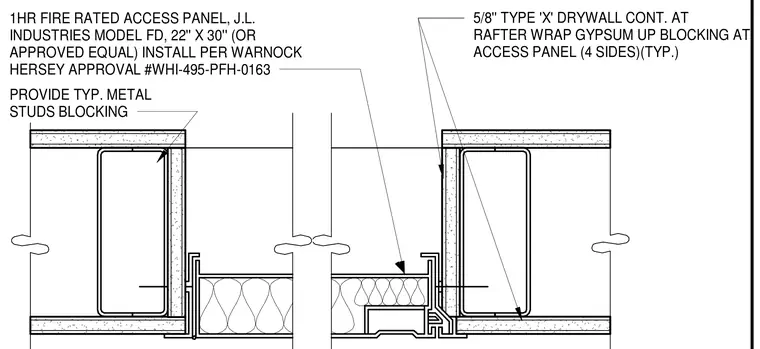

A twenty-two-inch by thirty-inch one-hour fire-rated access panel by J.L. Industries, Model FD, is installed according to Warnock Hersey approval number WHI-495-PFH-0163. Typical metal stud blocking is provided on four sides of the opening. Five-eighths-inch Type X gypsum board runs continuously at the rafter, wrapping the gypsum up the blocking at the access panel on all four sides.
1HR FIRE RATED ACCESS PANEL, J.L. INDUSTRIES MODEL FD, 22'' X 30'' (OR APPROVED EQUAL) INSTALL PER WARNOCK HERSEY APPROVAL #WHI-495-PFH-0163 PROVIDE TYP. METAL STUDS BLOCKING 5/8'' TYPE 'X' DRYWALL CONT. AT RAFTER WRAP GYPSUM UP BLOCKING AT ACCESS PANEL (4 SIDES)(TYP.)
