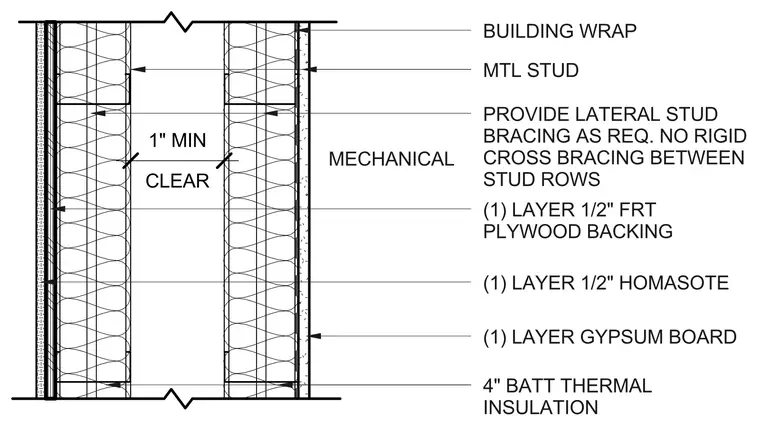

This double metal stud wall assembly maintains a minimum one-inch clear separation between stud rows to provide acoustic and mechanical isolation. Each stud row receives four-inch batt thermal insulation and lateral stud bracing as required, omitting rigid cross-bracing between the rows. The exterior faces are finished with one layer of half-inch fire-retardant treated plywood backing, one layer of half-inch Homasote, and one layer of gypsum board, protected by an exterior building wrap.
PROVIDE LATERAL STUD BRACING AS REQ. NO RIGID CROSS BRACING BETWEEN STUD ROWS 4" BATT THERMAL INSULATION (1) LAYER 1/2" FRT PLYWOOD BACKING CLEAR 1" MIN MTL STUD (1) LAYER 1/2" HOMASOTE (1) LAYER GYPSUM BOARD BUILDING WRAP MECHANICAL
