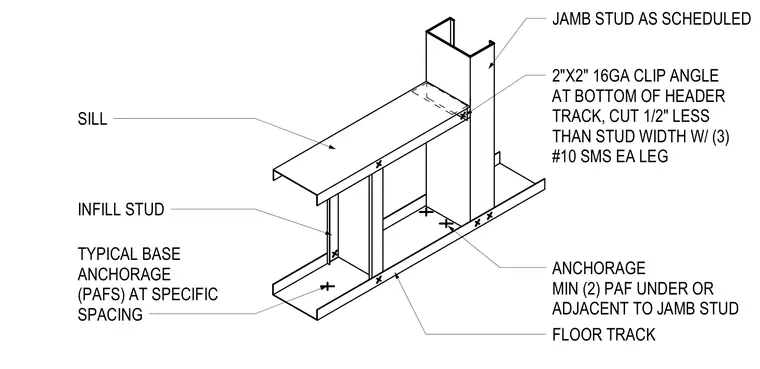

The assembly consists of a cold-formed steel floor track anchored to the substrate with powder-actuated fasteners at specified spacings, featuring a minimum of two fasteners located under or adjacent to the jamb stud. Infill studs frame into the floor track and sill member. A 2-inch by 2-inch 16-gauge clip angle is positioned at the bottom of the header track, cut one-half inch less than the stud width, and fastened with three number 10 sheet metal screws on each leg to the jamb stud as scheduled.
SILL INFILL STUD ANCHORAGE MIN (2) PAF UNDER OR ADJACENT TO JAMB STUD FLOOR TRACK TYPICAL BASE ANCHORAGE (PAFS) AT SPECIFIC SPACING 2"X2" 16GA CLIP ANGLE AT BOTTOM OF HEADER TRACK, CUT 1/2" LESS THAN STUD WIDTH W/ (3) #10 SMS EA LEG JAMB STUD AS SCHEDULED
