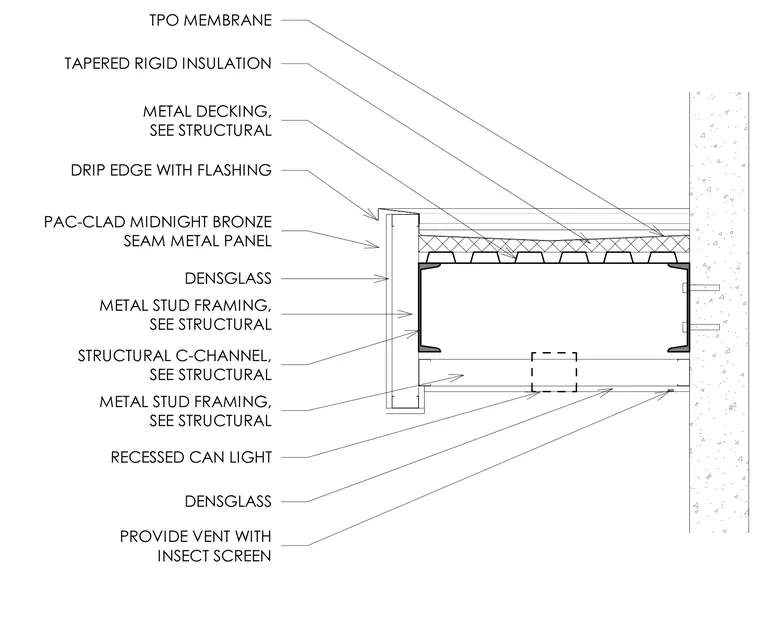

This canopy section detail shows a roof and soffit assembly tied back to a structural wall. The top of the canopy consists of a TPO membrane over tapered rigid insulation and metal decking, finished with a drip edge and flashing at the outer edge. The fascia is clad in PAC-CLAD midnight bronze seam metal panels over DensGlass sheathing and cold-formed metal stud framing backed by a structural C-channel. The underside features a recessed can light, additional metal stud framing, and a vent with an insect screen.
DRIP EDGE WITH FLASHING TAPERED RIGID INSULATION METAL DECKING, SEE STRUCTURAL TPO MEMBRANE RECESSED CAN LIGHT STRUCTURAL C-CHANNEL, SEE STRUCTURAL METAL STUD FRAMING, SEE STRUCTURAL DENSGLASS PAC-CLAD MIDNIGHT BRONZE SEAM METAL PANEL METAL STUD FRAMING, SEE STRUCTURAL PROVIDE VENT WITH INSECT SCREEN DENSGLASS
