Structural · A-3HE6T

Rae Base Connection at Grid 9Y and 13Y

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates Roof / Floor Openings

Connections

Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

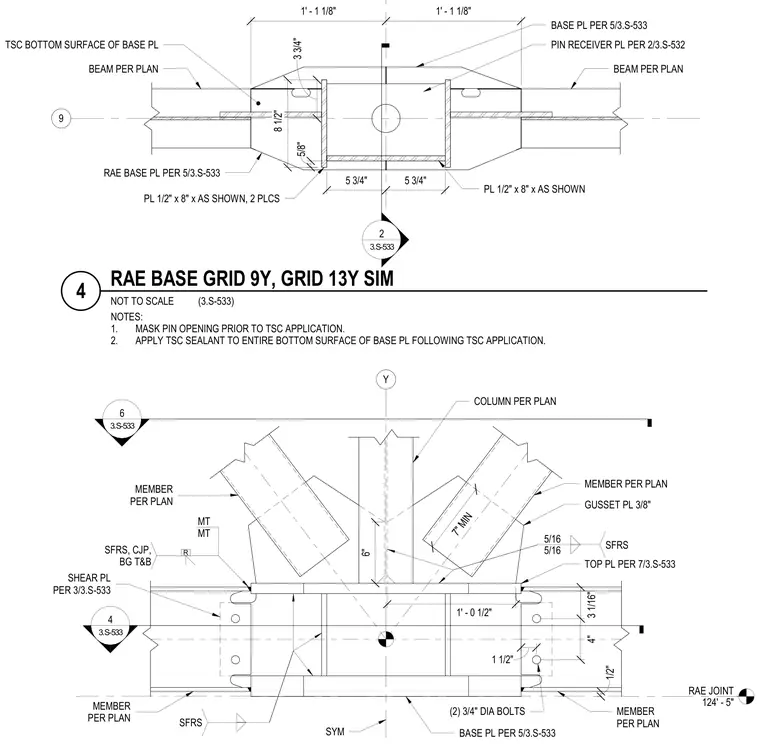

A structural steel base connection assembly features a column per plan supported by base plates, pin receiver plates, and connecting beams. Bracing members tie into a three-eighths-inch thick gusset plate with five-sixteenth-inch welds and complete joint penetration welds. Additional components include half-inch by eight-inch plates in two places, two three-quarter-inch diameter bolts, and shear plates as indicated. Notes specify masking the pin opening prior to thermal sprayed coating application and applying TSC sealant to the entire bottom surface of the base plate following coating application.
