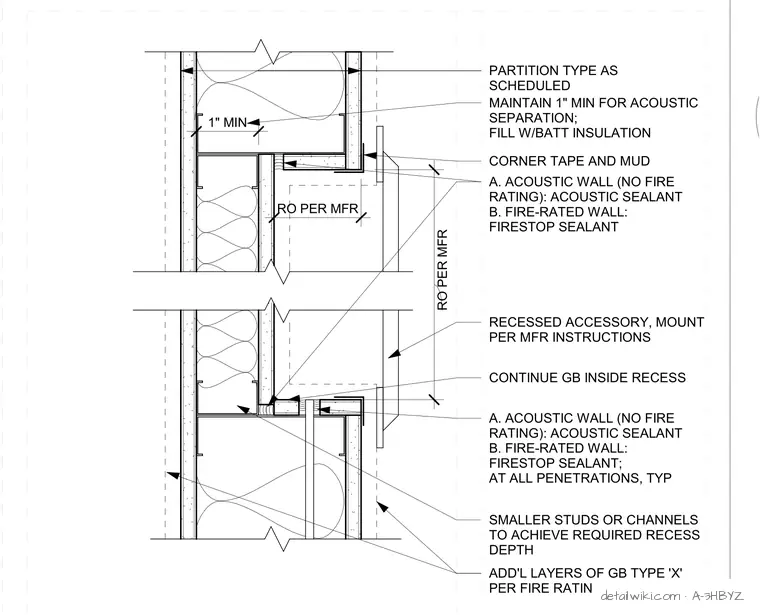

A recessed accessory is installed within a framed gypsum board partition. Smaller studs or channels are utilized to achieve the required recess depth, with additional layers of Type X gypsum board added per the fire rating schedule. Gypsum board is continued inside the recess with corner tape and mud applied at all penetrations. A one-inch minimum acoustic separation is maintained and filled with batt insulation. Acoustic sealant is applied for non-rated acoustic walls, while firestop sealant is used for fire-rated assemblies.
RO PER MFR RO PER MFR RECESSED ACCESSORY, MOUNT PER MFR INSTRUCTIONS CONTINUE GB INSIDE RECESS SMALLER STUDS OR CHANNELS TO ACHIEVE REQUIRED RECESS DEPTH ADD'L LAYERS OF GB TYPE 'X' PER FIRE RATING PARTITION TYPE AS SCHEDULED A. ACOUSTIC WALL (NO FIRE RATING): ACOUSTIC SEALANT B. FIRE-RATED WALL: FIRESTOP SEALANT 1" MIN MAINTAIN 1" MIN FOR ACOUSTIC SEPARATION; FILL W/BATT INSULATION A. ACOUSTIC WALL (NO FIRE RATING): ACOUSTIC SEALANT B. FIRE-RATED WALL: FIRESTOP SEALANT; AT ALL PENETRATIONS, TYP CORNER TAPE AND MUD
