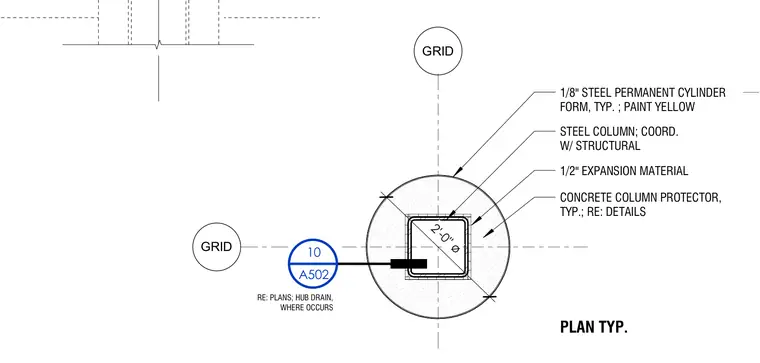

A structural steel column is centered on grid lines and surrounded by a two-foot-diameter concrete column protector. An eighth-inch steel permanent cylinder form encloses the concrete protector and is specified to be painted yellow. A half-inch expansion material separates the assembly where required. A hub drain is located adjacent to the column per plans.
STEEL COLUMN; COORD. W/ STRUCTURAL CONCRETE COLUMN PROTECTOR, TYP.; RE: DETAILS 2'-0" ø 1/8" STEEL PERMANENT CYLINDER FORM, TYP. ; PAINT YELLOW 1/2" EXPANSION MATERIAL GRID GRID 10 A502 RE: PLANS; HUB DRAIN, WHERE OCCURS PLAN TYP.
