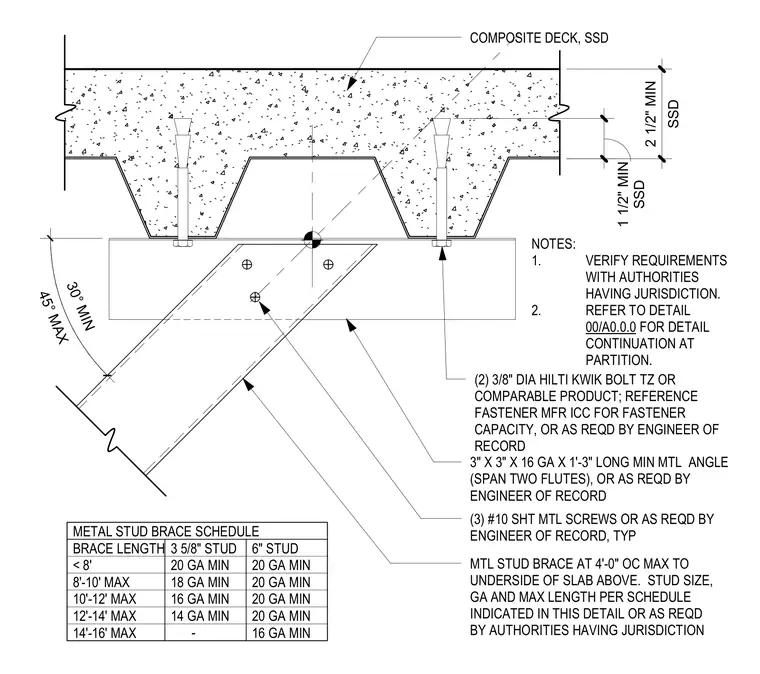

A cold-formed metal stud lateral brace anchors to the underside of an overhead composite metal deck slab. A 3" by 3" by 16 gauge by 1'-3" long minimum metal angle spans across two flutes of the concrete-filled composite deck. Two 3/8" diameter Hilti Kwik Bolt TZ expansion anchors secure the angle into the concrete slab. A metal stud brace connects to the angle clip using three number 10 sheet metal screws, positioned at a 30 to 45 degree angle. A metal stud brace schedule is provided detailing required stud gauges for various brace lengths.
(2) 3/8" DIA HILTI KWIK BOLT TZ OR COMPARABLE PRODUCT; REFERENCE FASTENER MFR ICC FOR FASTENER CAPACITY, OR AS REQD BY ENGINEER OF RECORD 3" X 3" X 16 GA X 1'-3" LONG MIN MTL ANGLE (SPAN TWO FLUTES), OR AS REQD BY ENGINEER OF RECORD (3) #10 SHT MTL SCREWS OR AS REQD BY ENGINEER OF RECORD, TYP MTL STUD BRACE AT 4'-0" OC MAX TO UNDERSIDE OF SLAB ABOVE. STUD SIZE, GA AND MAX LENGTH PER SCHEDULE INDICATED IN THIS DETAIL OR AS REQD BY AUTHORITIES HAVING JURISDICTION COMPOSITE DECK, SSD SSD 1 1/2" MIN METAL STUD BRACE SCHEDULE BRACE LENGTH 3 5/8" STUD < 8' 20 GA MIN 8'-10' MAX 18 GA MIN 10'-12' MAX 16 GA MIN 12'-14' MAX 14 GA MIN - 14'-16' MAX 20 GA MIN 20 GA MIN 20 GA MIN 20 GA MIN 16 GA MIN 6" STUD SSD 2 1/2" MIN 45° MAX 30° MIN NOTES: 1. VERIFY REQUIREMENTS WITH AUTHORITIES HAVING JURISDICTION. 2. REFER TO DETAIL 00/A0.0.0 FOR DETAIL CONTINUATION AT PARTITION.
