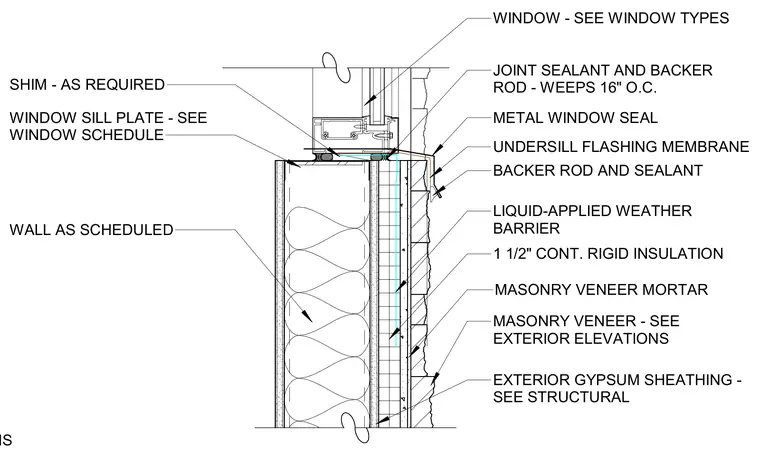

The window sill rests on shims and a window sill plate over a wall as scheduled, with a metal window seal extending outward above the masonry veneer. An undersill flashing membrane directs moisture outward, backed by a liquid-applied weather barrier over exterior gypsum sheathing and one-and-a-half-inch continuous rigid insulation. The stone masonry veneer incorporates mortar and weep holes spaced sixteen inches on center below a joint sealant and backer rod.
METAL WINDOW SEAL LIQUID-APPLIED WEATHER BARRIER WINDOW SILL PLATE - SEE WINDOW SCHEDULE 1 1/2" CONT. RIGID INSULATION MASONRY VENEER MORTAR MASONRY VENEER - SEE EXTERIOR ELEVATIONS JOINT SEALANT AND BACKER ROD - WEEPS 16" O.C. SHIM - AS REQUIRED UNDERSILL FLASHING MEMBRANE BACKER ROD AND SEALANT WINDOW - SEE WINDOW TYPES EXTERIOR GYPSUM SHEATHING - SEE STRUCTURAL WALL AS SCHEDULED MANUFACTURES SPECIFICATIONS
