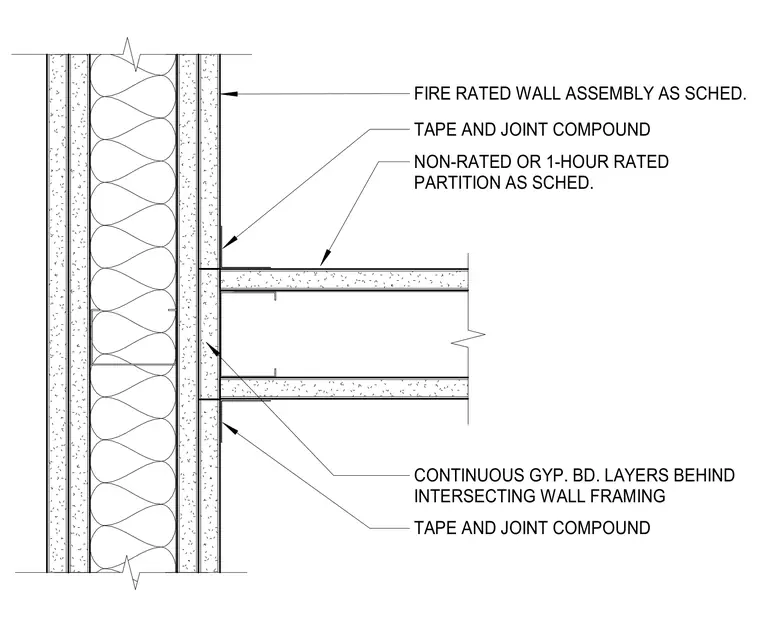

An intersecting non-rated or one-hour rated partition meets a continuous fire-rated wall assembly. Continuous gypsum board layers run behind the intersecting wall framing. Tape and joint compound finish the drywall joints at the partition connection points.
CONTINUOUS GYP. BD. LAYERS BEHIND INTERSECTING WALL FRAMING FIRE RATED WALL ASSEMBLY AS SCHED. NON-RATED OR 1-HOUR RATED PARTITION AS SCHED. TAPE AND JOINT COMPOUND TAPE AND JOINT COMPOUND
