A steel bolting flange assembly is constructed from three-sixteenth-inch plates joined with one-eighth-inch fillet welds. Side flange members are notched as required to accommodate the beam flange. Exterior exposed joints require welds to be wrapped around corners to ensure a watertight seal. Attachment to the primary structure is specified per structural drawings.

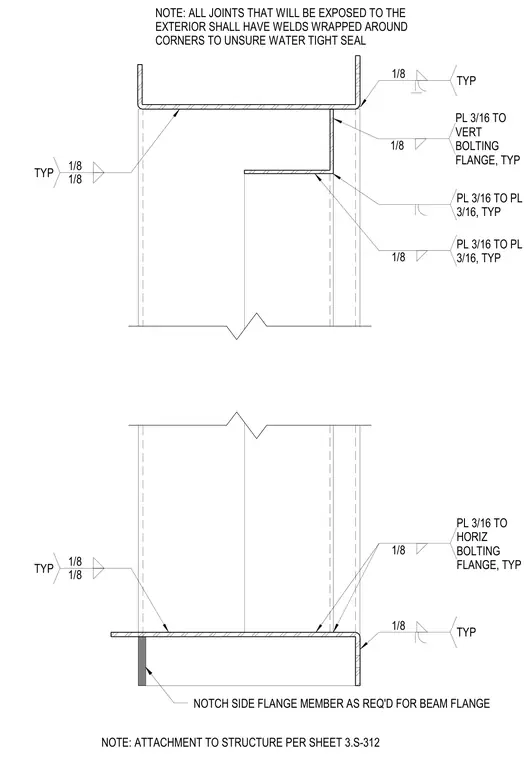

NOTCH SIDE FLANGE MEMBER AS REQ'D FOR BEAM FLANGE NOTE: ATTACHMENT TO STRUCTURE PER SHEET 3.S-312 1/8 PL 3/16 TO VERT BOLTING FLANGE, TYP 1/8 PL 3/16 TO PL 3/16, TYP PL 3/16 TO PL 3/16, TYP 1/8 PL 3/16 TO HORIZ BOLTING FLANGE, TYP 1/8 1/8 TYP 1/8 TYP 1/8 TYP 1/8 1/8 TYP NOTE: ALL JOINTS THAT WILL BE EXPOSED TO THE EXTERIOR SHALL HAVE WELDS WRAPPED AROUND CORNERS TO UNSURE WATER TIGHT SEAL
