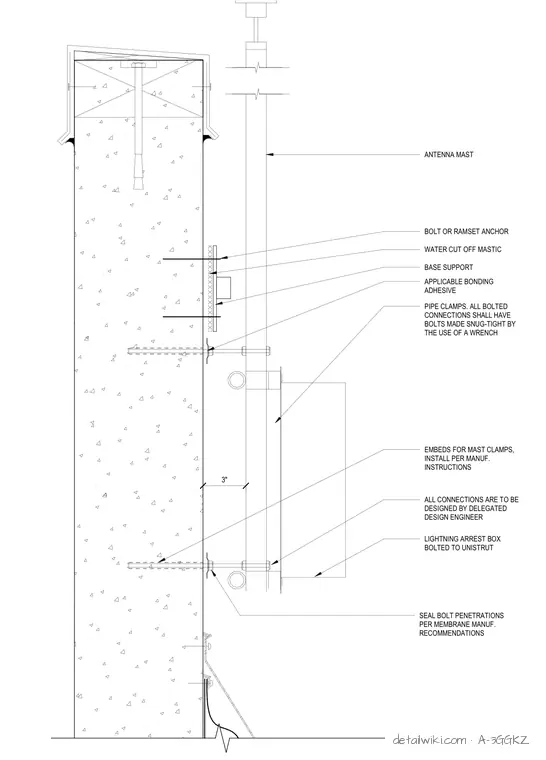

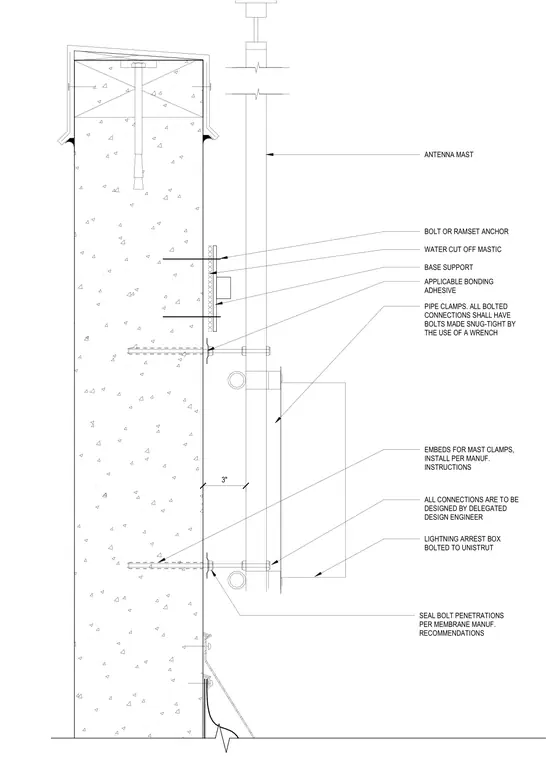

Three-inch pipe clamps secure the antenna mast to the concrete parapet wall substrate. The base support fastens with either a bolt or a Ramset anchor, utilizing water cut-off mastic and bonding adhesive at the interface to maintain waterproofing membrane integrity. A lightning arrest box mounts to the mast using Unistrut channels. All bolted connections require tightening to a snug-tight condition with a wrench. Seal bolt penetrations through the membrane per manufacturer recommendations; install all specific mast clamp embeds per manufacturer instructions. The delegated design engineer holds responsibility for the structural design of all connections.
Text on the drawing
3" ANTENNA MAST PIPE CLAMPS. ALL BOLTED CONNECTIONS SHALL HAVE BOLTS MADE SNUG-TIGHT BY THE USE OF A WRENCH ALL CONNECTIONS ARE TO BE DESIGNED BY DELEGATED DESIGN ENGINEER LIGHTNING ARREST BOX BOLTED TO UNISTRUT SEAL BOLT PENETRATIONS PER MEMBRANE MANUF. RECOMMENDATIONS EMBEDS FOR MAST CLAMPS, INSTALL PER MANUF. INSTRUCTIONS APPLICABLE BONDING ADHESIVE WATER CUT OFF MASTIC BASE SUPPORT BOLT OR RAMSET ANCHOR
