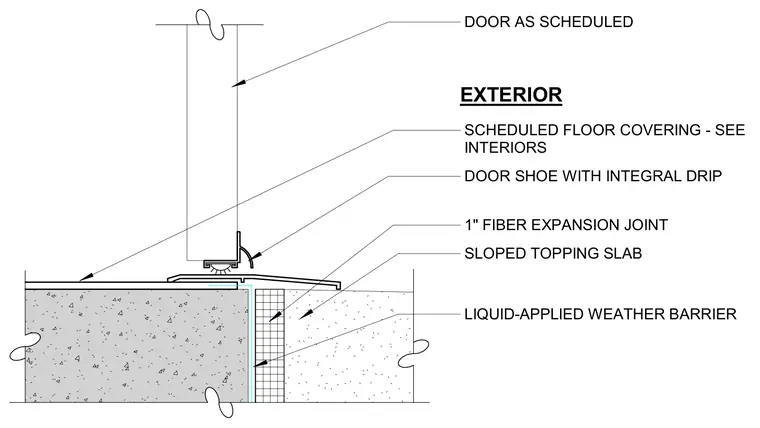

An exterior door as scheduled bears above a scheduled floor covering and a sloped topping slab. A door shoe with an integral drip interfaces with a one-inch fiber expansion joint separating the concrete slabs. A liquid-applied weather barrier coats the vertical face of the concrete substrate.
EXTERIOR DOOR AS SCHEDULED DOOR SHOE WITH INTEGRAL DRIP 1" FIBER EXPANSION JOINT SLOPED TOPPING SLAB LIQUID-APPLIED WEATHER BARRIER SCHEDULED FLOOR COVERING - SEE INTERIORS
