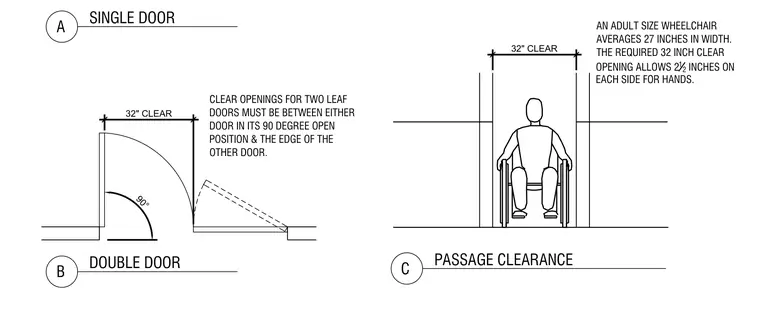

An adult size wheelchair averages twenty-seven inches in width to accommodate standard occupant proportions. The required thirty-two inch clear opening provides two and one-half inches of clearance on each side for hands. For two-leaf doors, clear openings must be measured between either door in its ninety-degree open position and the edge of the opposite door.
32" CLEAR 32" CLEAR CLEAR OPENINGS FOR TWO LEAF DOORS MUST BE BETWEEN EITHER DOOR IN ITS 90 DEGREE OPEN POSITION & THE EDGE OF THE OTHER DOOR. AN ADULT SIZE WHEELCHAIR AVERAGES 27 INCHES IN WIDTH. THE REQUIRED 32 INCH CLEAR OPENING ALLOWS 2 12 INCHES ON EACH SIDE FOR HANDS. 90° A SINGLE DOOR B DOUBLE DOOR C PASSAGE CLEARANCE
