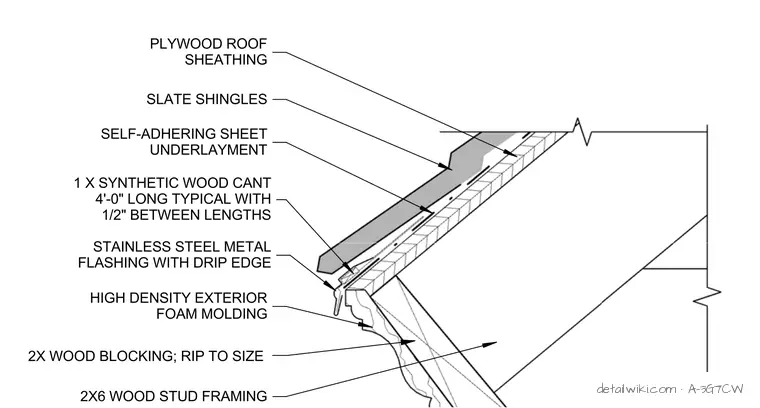

A-3G7CW — Roof Fascia Detail

Architectural · A-3G7CW

Roof Fascia Detail

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Composite Membrane / Roofing Metal (misc.)Stainless Steel Steel Stone Timber / Wood

Elements

Ceilings Drainage Insulation Roofs Waterproofing / Flashing

Text on the drawing

SLATE SHINGLES SELF-ADHERING SHEET UNDERLAYMENT STAINLESS STEEL METAL FLASHING WITH DRIP EDGE PLYWOOD ROOF SHEATHING HIGH DENSITY EXTERIOR FOAM MOLDING 2X6 WOOD STUD FRAMING 2X WOOD BLOCKING; RIP TO SIZE 1 X SYNTHETIC WOOD CANT 4'-0" LONG TYPICAL WITH 1/2" BETWEEN LENGTHS
