Architectural · A-3G6PA

18-Inch Shading Canopy Connection at Steel Column

Materials

Steel

Elements

Columns Walls Canopies Connections / Plates

Connections

HSS Connection

About this detail

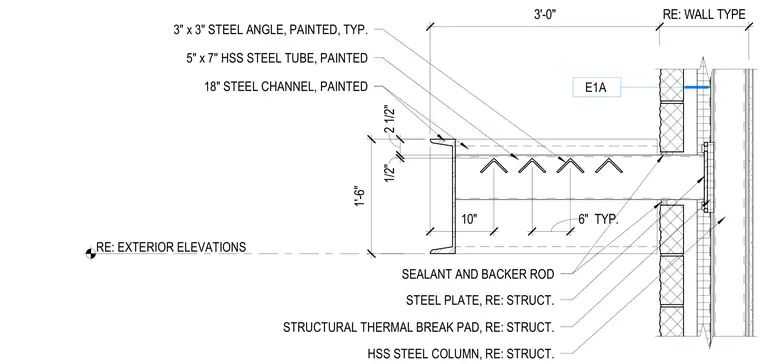

An eighteen-inch painted steel channel extends outward from a hollow structural section steel column to form a shading canopy, featuring welded three-by-three-inch painted steel angles spanning the interior. The canopy assembly connects back to the structural steel column via a steel plate separated by a structural thermal break pad. Sealant and a backer rod seal the joint where the canopy assembly meets the exterior wall construction. The outer edge projects three feet from the face of the wall, with framing members spaced at typical intervals.
