Architectural · A-3FYAK

Insulated Metal Panel Low Eave with Gutter at Bracket

Materials

Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Roofs Decks Drainage Connections / Plates

About this detail

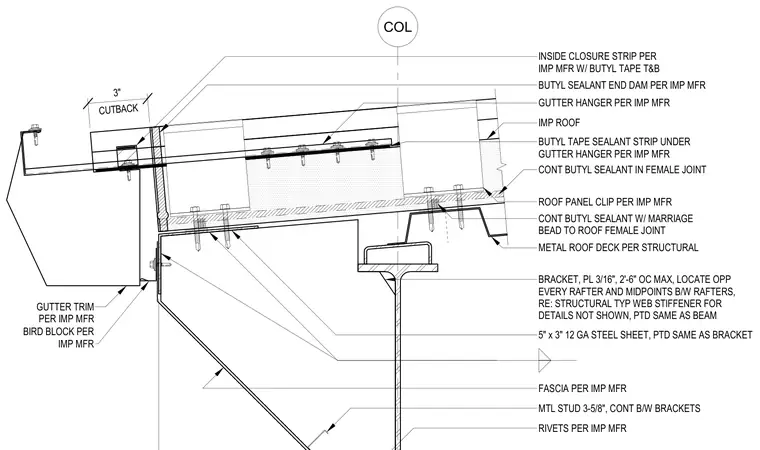

An insulated metal panel roof bears on a metal roof deck supported by a steel beam, terminating at a low eave with an integrated gutter. A three-sixteenths-inch steel plate bracket is spaced at two feet six inches on center maximum, located opposite every rafter and at midpoints between rafters with a typical web stiffener. A continuous three-and-five-eighths-inch metal stud runs between brackets, fastened with rivets per the manufacturer. The insulated metal panel roof is secured with roof panel clips and sealed with continuous butyl sealant in the female joint and a marriage bead to the roof female joint. An inside closure strip with top and bottom butyl tape, a butyl sealant end dam, and a butyl tape sealant strip under the gutter hanger complete the weather seal. A gutter trim and bird block are installed per the manufacturer instructions alongside a fascia.
