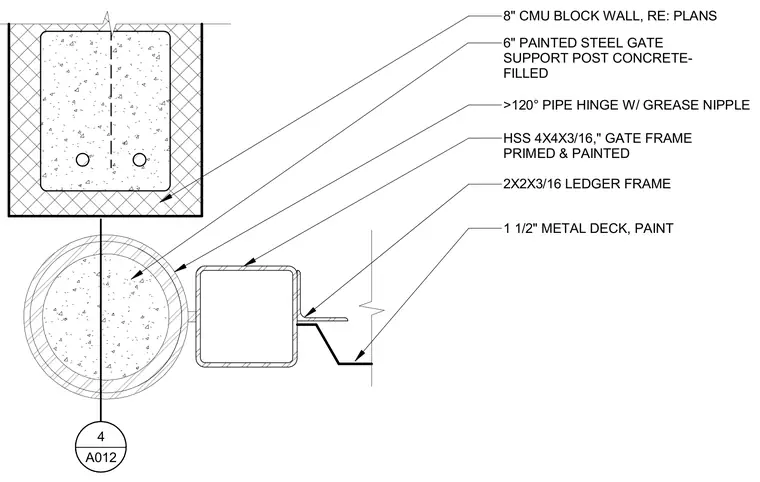

A six-inch painted steel gate support post is concrete-filled and connected to an eight-inch concrete masonry unit block wall. A greater than 120-degree pipe hinge with a grease nipple mounts the gate assembly. A hollow structural section 4x4x3/16-inch primed and painted gate frame connects to a 2x2x3/16-inch ledger frame. The ledger frame interfaces with a 1 1/2-inch painted metal deck.
8" CMU BLOCK WALL, RE: PLANS >120° PIPE HINGE W/ GREASE NIPPLE 2X2X3/16 LEDGER FRAME 1 1/2" METAL DECK, PAINT HSS 4X4X3/16," GATE FRAME PRIMED & PAINTED 6" PAINTED STEEL GATE SUPPORT POST CONCRETE- FILLED 4 A012 ______________
