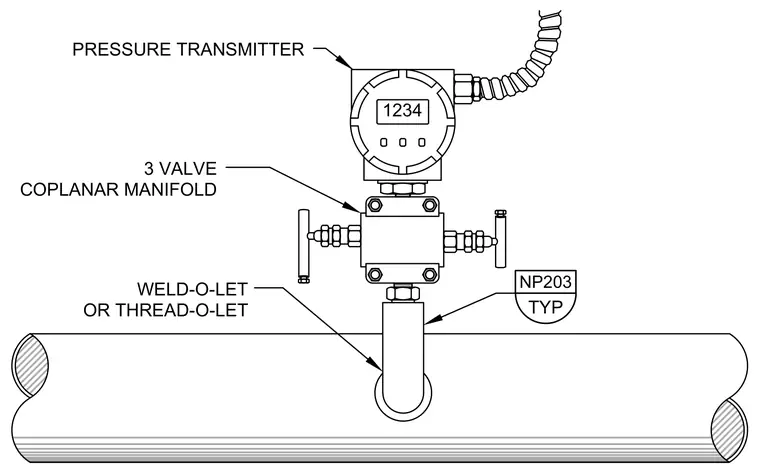

A pressure transmitter mounts directly to a process pipe utilizing a three-valve coplanar manifold. The manifold connects to the pipe through either a weld-o-let or thread-o-let branch connection. Flexible conduit feeds electrical wiring to the instrument housing. Typical installation uses standard fittings and designated tag numbers.
TYP NP203 OR THREAD-O-LET WELD-O-LET COPLANAR MANIFOLD 3 VALVE PRESSURE TRANSMITTER 1234
