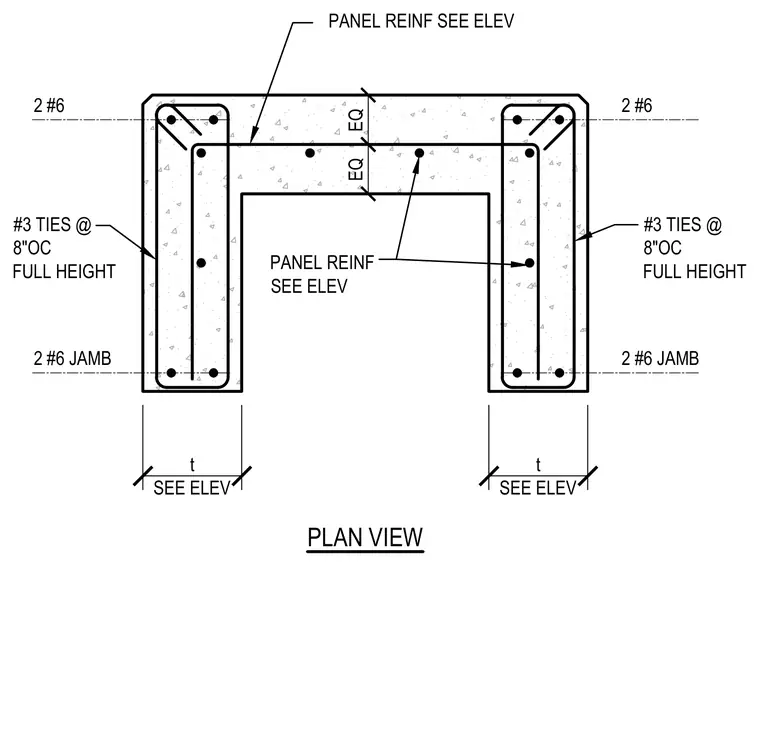

A concrete wall panel jamb configuration includes two number six jamb bars at each corner. Number three ties are spaced at eight inches on center for the full height of the assembly. Additional panel reinforcement is provided as specified on the elevation drawings. Wall thickness t is coordinated with the structural elevation.
PLAN VIEW 2 #6 JAMB 2 #6 JAMB EQ EQ PANEL REINF SEE ELEV t SEE ELEV 2 #6 2 #6 #3 TIES @ 8"OC FULL HEIGHT #3 TIES @ 8"OC FULL HEIGHT PANEL REINF SEE ELEV t SEE ELEV
