A-3EYCT — Vertical Metal Siding - Inside Corner - Plan

Architectural · A-3EYCT

Vertical Metal Siding - Inside Corner - Plan

Scale: 3" = 1'-0"
Units: imperial
Sheet: A7.22
Discipline: Architectural

Materials

Aluminum Metal (misc.)

Elements

Expansion / Control Joints Facades / Cladding Walls Waterproofing / Flashing

Connections

Bolted Connection Welded Connection

Text on the drawing

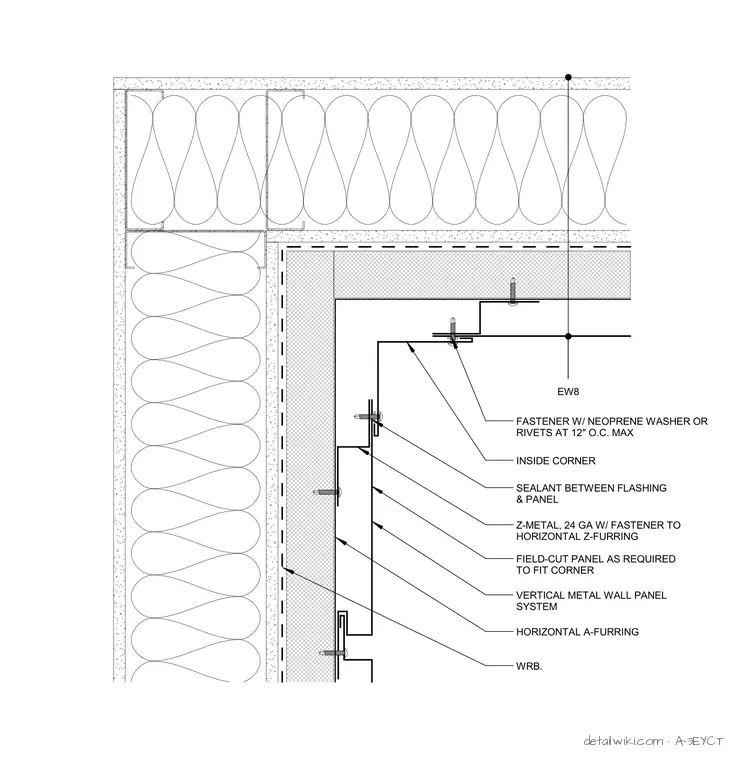

INSIDE CORNER FASTENER W/ NEOPRENE WASHER OR RIVETS AT 12" O.C. MAX Z-METAL, 24 GA W/ FASTENER TO HORIZONTAL Z-FURRING FIELD-CUT PANEL AS REQUIRED TO FIT CORNER SEALANT BETWEEN FLASHING & PANEL VERTICAL METAL WALL PANEL SYSTEM WRB. HORIZONTAL A-FURRING EW8
