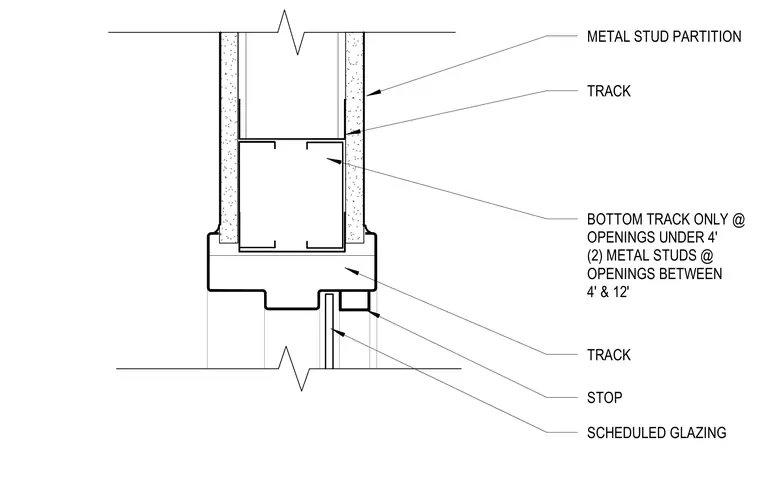

This metal stud partition head detail features a track supporting scheduled glazing with a stop. Openings under four feet use a single bottom track, while openings between four and twelve feet incorporate two metal studs.
BOTTOM TRACK ONLY @ OPENINGS UNDER 4' (2) METAL STUDS @ OPENINGS BETWEEN 4' & 12' TRACK METAL STUD PARTITION TRACK SCHEDULED GLAZING STOP
