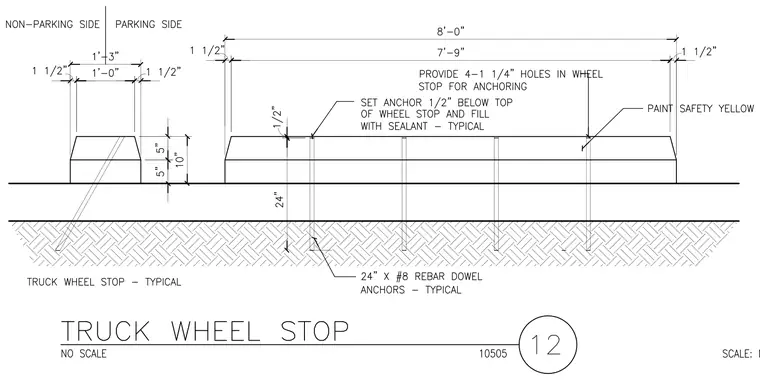

A precast concrete truck wheel stop measuring 10 inches high by 1 foot 3 inches wide at the base is anchored to a concrete slab with four 24-inch by number 8 rebar dowels per unit. The wheel stop is detailed with four 1-1/4 inch holes for anchoring, with anchors set 1/2 inch below the top of the wheel stop and the recesses filled with sealant typically. The entire assembly is painted safety yellow and separates the non-parking side from the parking side.
