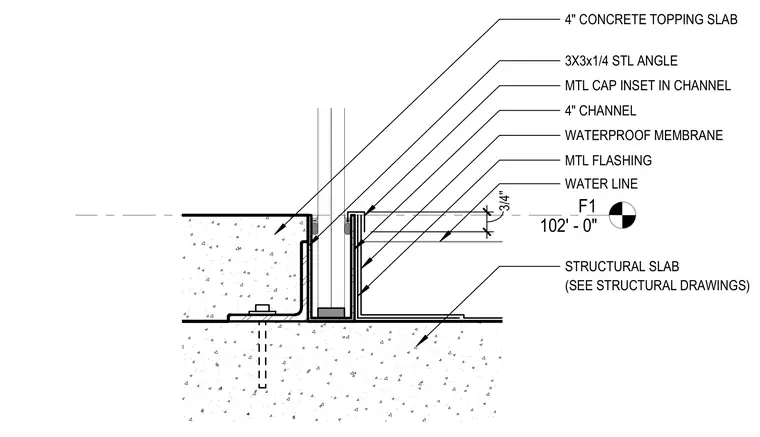

A guardrail attachment and drainage interface at a concrete waterfall edge condition. A 4-inch concrete topping slab and structural concrete slab receive a waterproof membrane beneath a 4-inch steel channel and a 3x3x1/4-inch steel angle anchor assembly. A metal cap is inset within the channel, while metal flashing manages water drainage relative to the indicated water line at elevation F1 102'-0".
F1 102' - 0" MTL CAP INSET IN CHANNEL 3 / 4 " WATERPROOF MEMBRANE MTL FLASHING 4" CHANNEL 3X3x1/4 STL ANGLE 4" CONCRETE TOPPING SLAB STRUCTURAL SLAB (SEE STRUCTURAL DRAWINGS) WATER LINE
