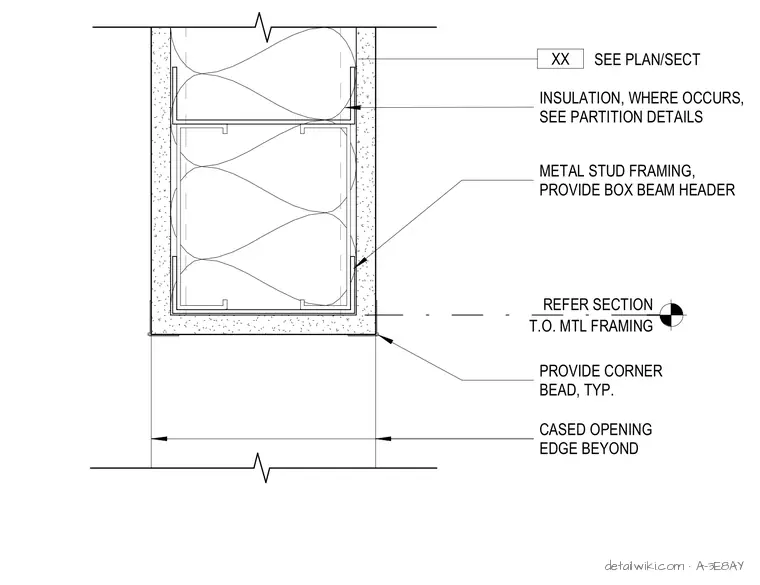

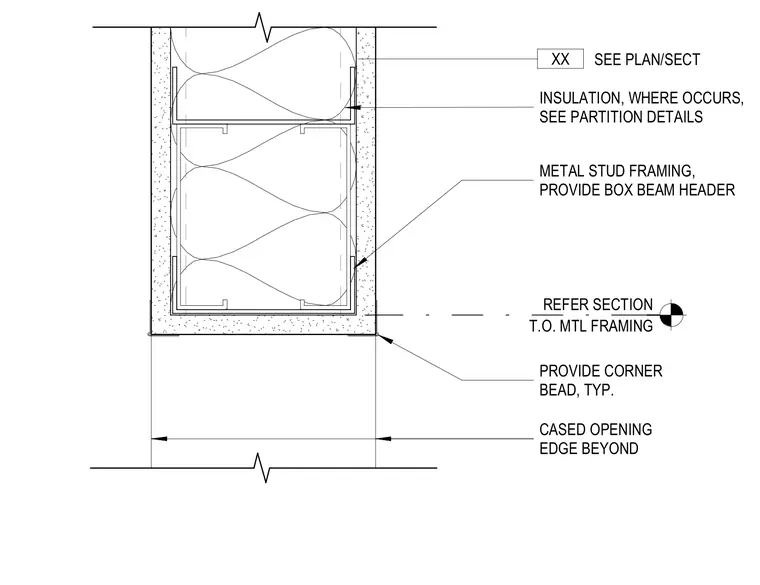

This assembly consists of a box beam header fabricated from cold-formed metal stud framing, positioned within a partition wall. The header is enclosed by gypsum wallboard on both faces, with corner beads installed at the edges for a finished cased opening. Insulation is provided within the wall cavity where specified by partition details. The top of the metal framing is referenced to a separate section for elevation alignment.
Text on the drawing
METAL STUD FRAMING, PROVIDE BOX BEAM HEADER REFER SECTION T.O. MTL FRAMING PROVIDE CORNER BEAD, TYP. INSULATION, WHERE OCCURS, SEE PARTITION DETAILS CASED OPENING EDGE BEYOND SEE PLAN/SECT XX
