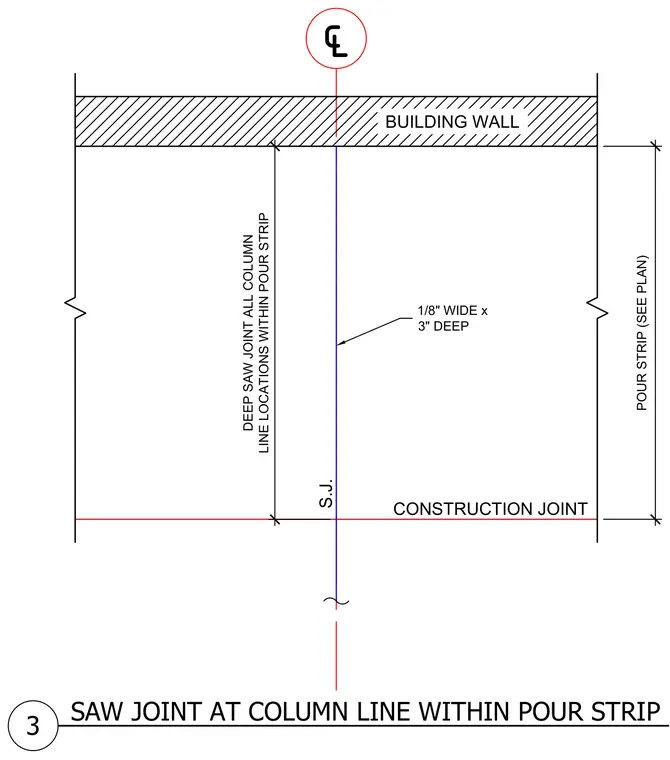

A deep saw joint is positioned at all column line locations within the pour strip adjacent to the building wall. The saw joint measures one-eighth inch wide by three inches deep and intersects a perpendicular construction joint. The pour strip width is sized per plan.
POUR STRIP (SEE PLAN) DEEP SAW JOINT ALL COLUMN LINE LOCATIONS WITHIN POUR STRIP CONSTRUCTION JOINT S.J. ℄ BUILDING WALL SAW JOINT AT COLUMN LINE WITHIN POUR STRIP 3 1/8" WIDE x 3" DEEP
