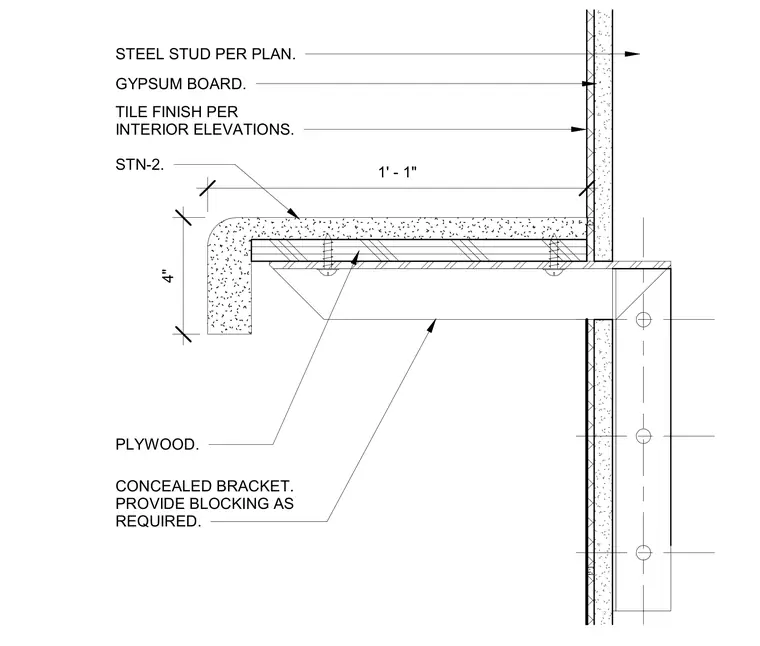

A concealed shelf bracket supports a plywood substrate faced with stone tile material designated as STN-2. The assembly attaches to steel stud wall framing with gypsum board and tile finish per interior elevations. Necessary wood blocking is provided as required behind the wall finish. Fasteners secure the plywood and stone assembly directly to the bracket frame.
1' - 1" 4" STEEL STUD PER PLAN. GYPSUM BOARD. TILE FINISH PER INTERIOR ELEVATIONS. STN-2. PLYWOOD. CONCEALED BRACKET. PROVIDE BLOCKING AS REQUIRED.
