Architectural · A-3DVSH

Wood Grille and Gypsum Board Ceiling Junction

Materials

Concrete Steel Timber / Wood Gypsum / Drywall

Elements

Ceilings Floors / Slabs Decks Bracing Insulation

Connections

Deck Attachment

About this detail

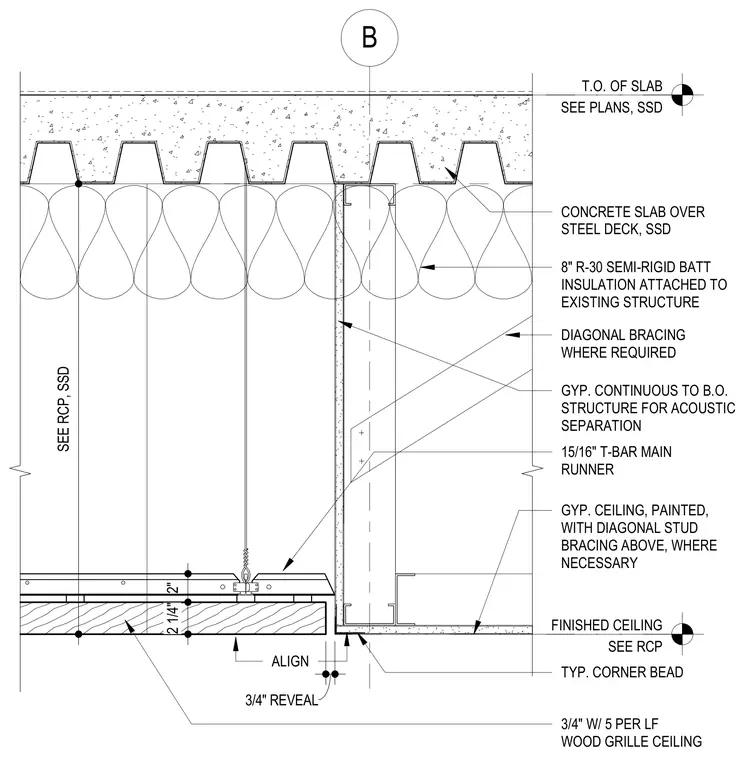

This assembly meets at a concrete slab over a steel deck with eight-inch R-thirty semi-rigid batt insulation attached to the existing structure. A gypsum board partition or wall extends continuously to the bottom of the structure for acoustic separation, incorporating diagonal bracing where required. A fifteen-sixteenths inch T-bar main runner supports the adjacent ceiling system. The lower ceiling features a painted gypsum board finish with diagonal stud bracing above, terminating in a typical corner bead at the vertical reveal. Adjoining this is a three-quarter inch by five per linear foot wood grille ceiling, separated from the gypsum board by a three-quarter inch reveal with aligned edges.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
