Roof Screen Wall Parapet and Steel Beam Connection

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Facades / Cladding Roofs Decks Waterproofing / Flashing Insulation

Connections

Base Plate / Anchorage HSS Connection

About this detail

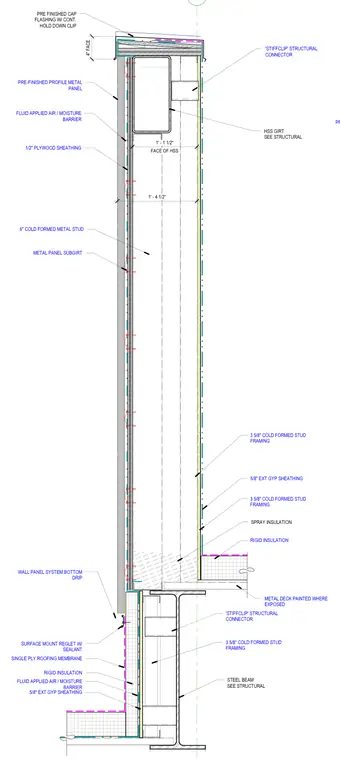

A roof screen wall parapet terminates at a structural steel beam and metal deck assembly. The exterior features a pre-finished cap flashing with a continuous hold-down clip over pre-finished profile metal panels, a fluid-applied air and moisture barrier, one-half-inch plywood sheathing, and six-inch cold-formed metal studs with metal panel subgirts. The interior framing incorporates three-and-five-eighths-inch cold-formed metal studs with five-eighths-inch exterior gypsum sheathing, rigid insulation, and spray insulation. Stiffclip structural connectors secure the framing to hollow structural section girts and steel beams sized per structural plans. A surface-mounted reglet with sealant, bottom drip, and single-ply roofing membrane complete the flashing and waterproofing integration at the roof level.
