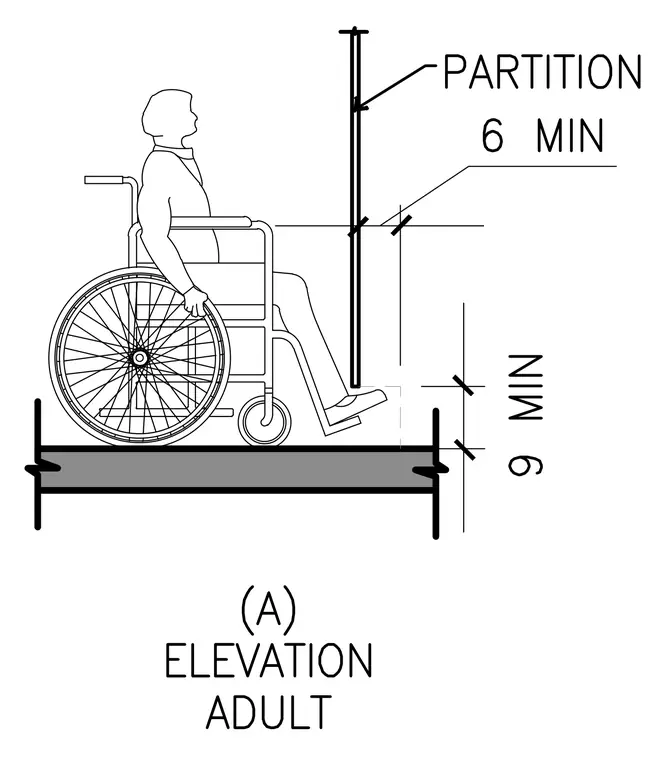

An adult in a wheelchair is positioned adjacent to a partition extending above a floor slab with designated vertical clearances. A minimum clearance dimension of nine inches is maintained above the finished floor to the lower partition limit. A six-inch minimum dimension marks the reach zone above the wheelchair armrest level. These dimensional parameters establish minimum spatial requirements for accessible partitions and grab bar or accessory placements.
