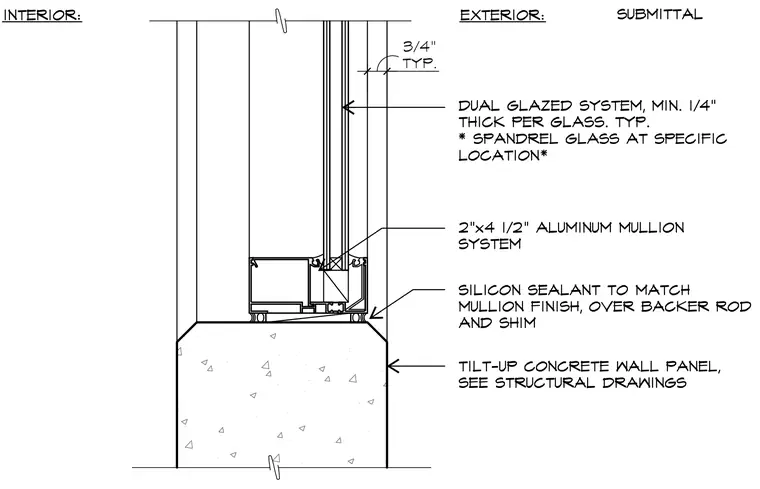

A dual-glazed system featuring a minimum quarter-inch thick glass per pane is set into a two-by-four-and-a-half-inch aluminum mullion system. Spandrel glass is specified at specific locations. The aluminum mullion system bears on a tilt-up concrete wall panel, sized per structural drawings. Silicone sealant to match the mullion finish is applied over a backer rod and shim at the base.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
