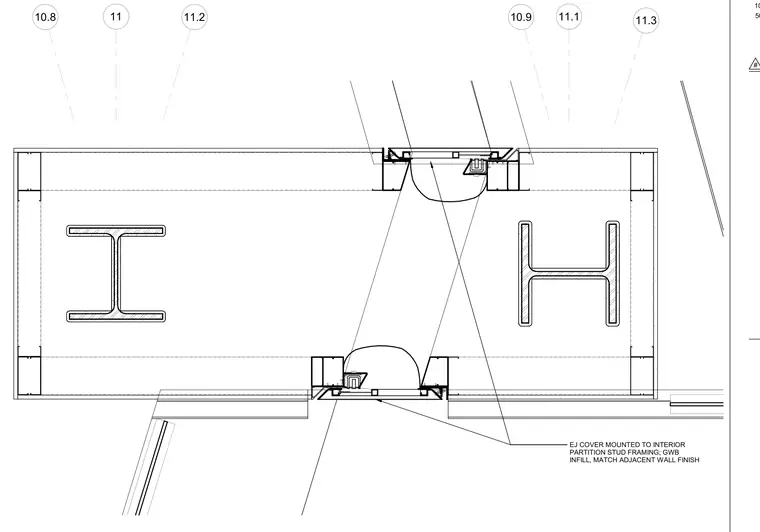

An expansion joint cover is mounted directly to the interior partition stud framing across a wall-to-wall building joint. Gypsum wallboard infill finishes out the assembly to match the adjacent wall finish on both sides.
11 11.1 11.2 11.3 EJ COVER MOUNTED TO INTERIOR PARTITION STUD FRAMING; GWB INFILL, MATCH ADJACENT WALL FINISH 10.8 10.9 # 50% DESIGN DEVELOPMENT 100% DESIGN DEVELOPMENT 50% CONSTRUCTION DRAWINGS
