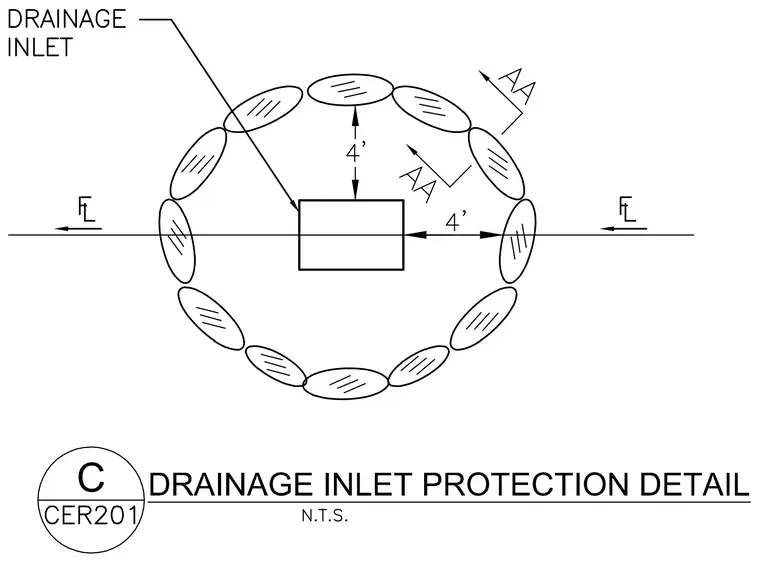

A rectangular drainage inlet is centered within a circular perimeter of sediment control barriers spaced four feet away from each edge. Flow lines intersect the inlet from opposing horizontal directions. Section cut AA indicates the cross-sectional profile orientation across the perimeter protection barrier.
