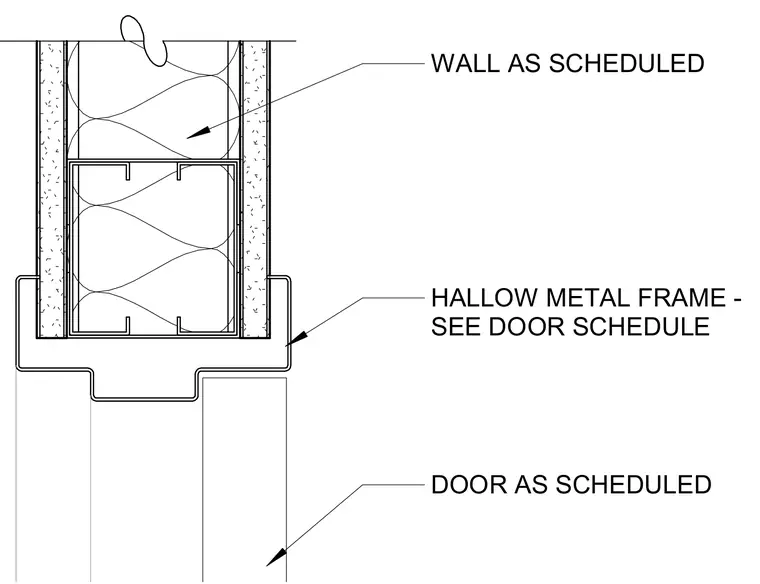

A hollow metal frame connects to a stud wall assembly as scheduled. The door aligns with the frame profile per the architectural door schedule. Wall construction details follow the architectural wall schedule.
