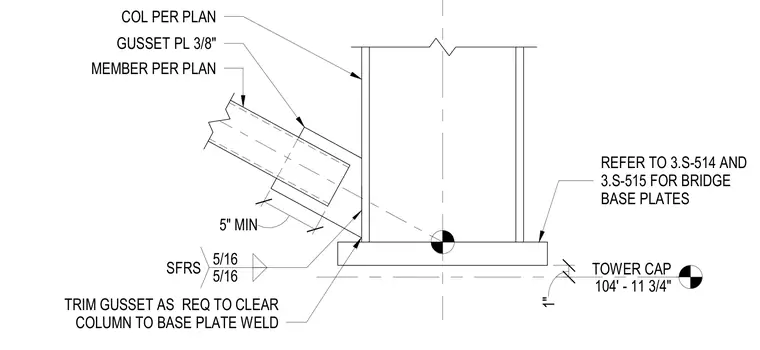

A structural steel column connects to a base plate with a specified column-to-base plate weld. A three-eighths-inch thick gusset plate attaches to the column and a diagonal brace member sized per plan, with five-sixteenths-inch fillet welds on both sides. The gusset plate is trimmed as required to maintain clearance. A one-inch dimension references the tower cap elevation at one hundred four feet and eleven and three-quarters inches. Bridge base plates are referenced on separate sheets.
TOWER CAP 104' - 11 3/4" GUSSET PL 3/8" MEMBER PER PLAN 5/16 5/16 SFRS TRIM GUSSET AS REQ TO CLEAR COLUMN TO BASE PLATE WELD 1" 5" MIN COL PER PLAN REFER TO 3.S-514 AND 3.S-515 FOR BRIDGE BASE PLATES
