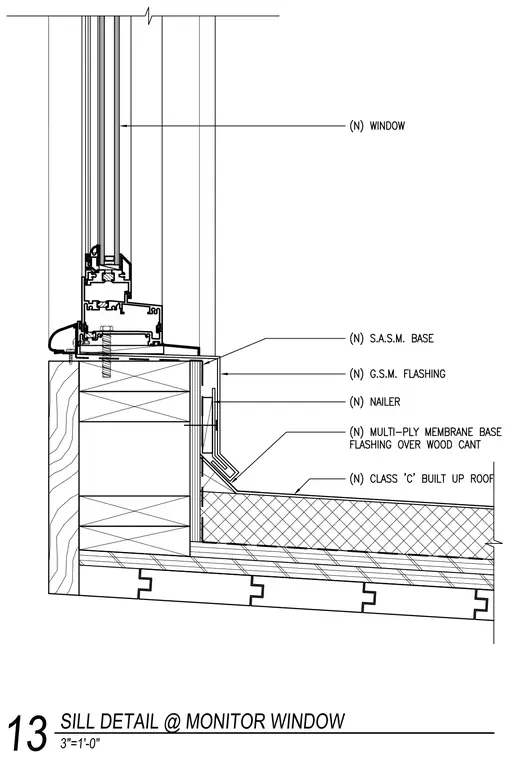

A new window unit is mounted on a wood nailer curb above a multi-ply membrane base flashing over a wood cant strip. Galvanized sheet metal flashing extends down the vertical face over the self-adhered sheet membrane base and ties into the class C built-up roof assembly. The sill assembly rests on framed wood construction supported by the roof structure.
