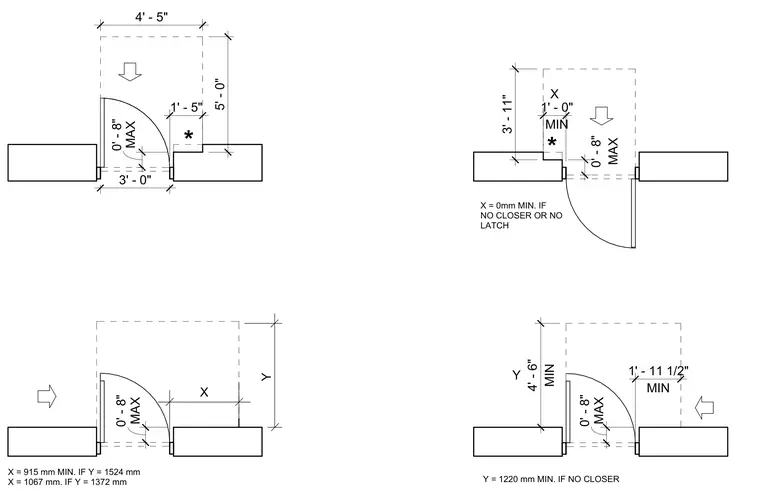

Accessible door maneuvering clearance diagrams show minimum approach dimensions, clear floor spaces, and latch-side clearances for various door swing configurations. Dimensioned pathways include pull-side and push-side approaches with specific clearance values based on the presence of door closers and latches.
Y = 1220 mm MIN. IF NO CLOSER X = 915 mm MIN. IF Y = 1524 mm X = 1067 mm. IF Y = 1372 mm Y X X MIN 4' - 6" 3' - 11" MAX 0' - 8" MAX 0' - 8" MAX 0' - 8" MAX 0' - 8" * * MIN 1' - 11 1/2" Y X = 0mm MIN. IF NO CLOSER OR NO LATCH MIN 1' - 0" 1' - 5" 5' - 0" 4' - 5" 3' - 0"
