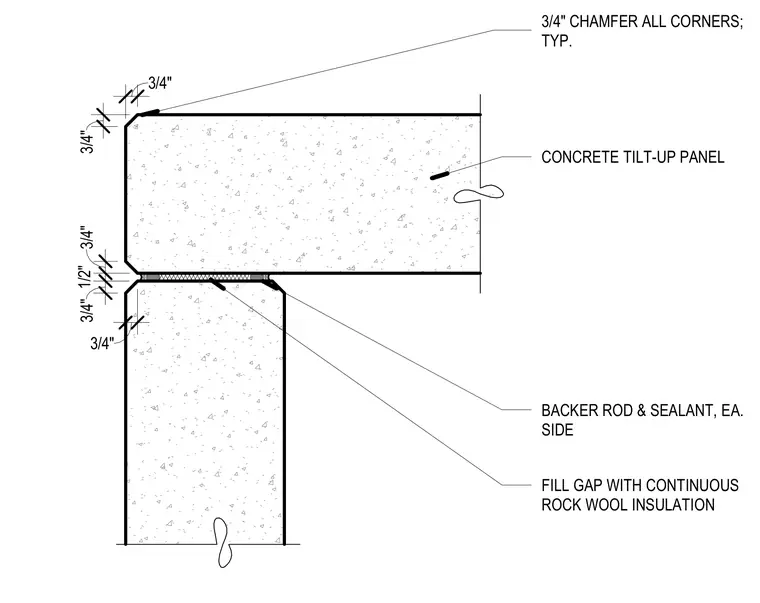

Concrete tilt-up panels form an external 90-degree corner with three-quarter-inch chamfers on all typical outside corners. The joint between panels is packed with continuous rock wool insulation in the gap, sealed on each side with a backer rod and elastomeric sealant.
3/4" 3/4" CHAMFER ALL CORNERS; TYP. 3/4" 1/2" 3/4" CONCRETE TILT-UP PANEL BACKER ROD & SEALANT, EA. SIDE FILL GAP WITH CONTINUOUS ROCK WOOL INSULATION 3/4" 3/4"
