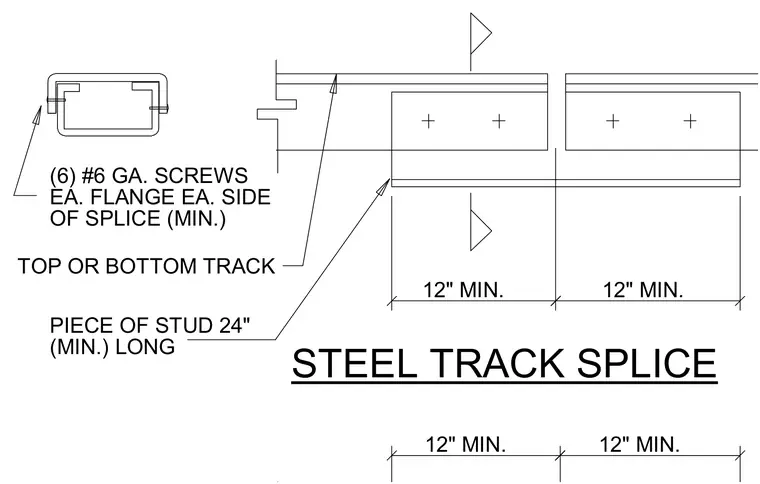

A structural splice for a top or bottom cold-formed steel track utilizes a nested twenty-four-inch minimum length piece of stud. The splice requires a minimum twelve-inch extension on each side of the track joint. Fastening is achieved using six gauge-six screws on each flange on each side of the splice.
12" MIN. 12" MIN. STEEL TRACK SPLICE (MIN.) LONG PIECE OF STUD 24" OF SPLICE (MIN.) EA. FLANGE EA. SIDE (6) #6 GA. SCREWS TOP OR BOTTOM TRACK 12" MIN. 12" MIN.
