Stucco Door Head Detail Over Metal Stud Framing

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Beams Doors Waterproofing / Flashing Insulation Drainage Millwork / Casework

About this detail

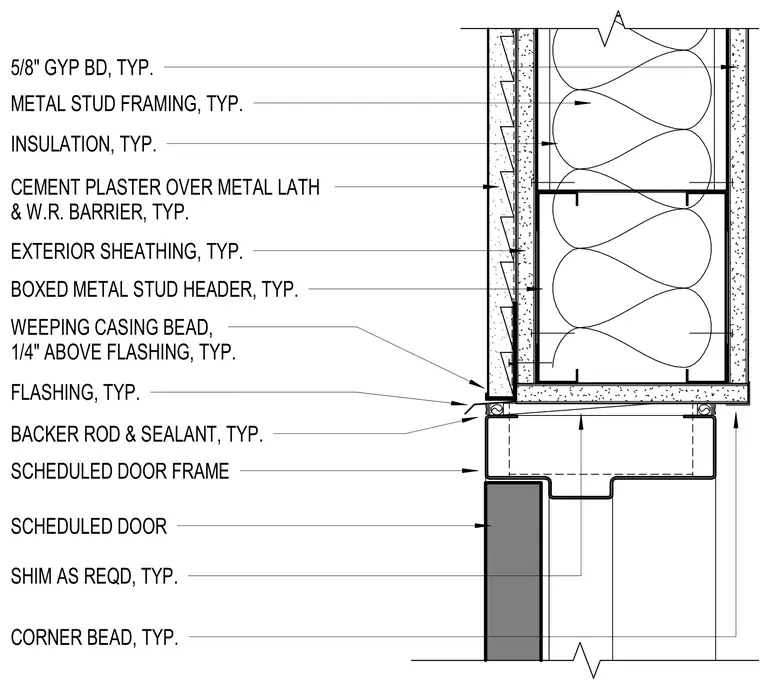

A door head assembly within a cold-formed steel stud wall features exterior cement plaster over metal lath and a water-resistant barrier. A boxed metal stud header is framed above the scheduled door frame, which is installed with shims as required. A flashing is integrated above the door frame with a weeping casing bead positioned one-quarter inch above it. The joint between the flashing and the door frame is sealed with backer rod and sealant. The interior side of the wall assembly is finished with gypsum board over insulation and metal stud framing.
