Architectural · A-3C4D4

Curtain Wall Head and Roller Shade Detail at Steel Beam

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Beams Walls Windows Curtain Walls Ceilings Entrances Anchors / Embeds

Connections

Welded Connection

About this detail

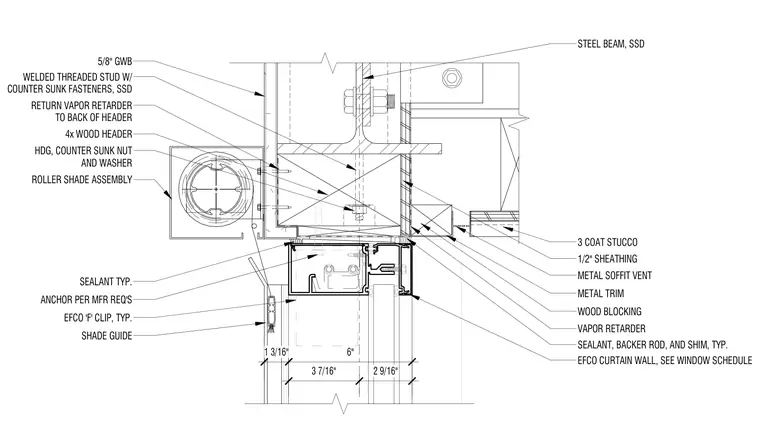

An Efco curtain wall head interfaces with a structural steel beam and a four-by wood header supporting a roller shade assembly. The head frame is secured using typical Efco F-clips, anchors per manufacturer requirements, and a welded threaded stud with countersunk fasteners, hot-dip galvanized nuts, and washers. The interior finish features five-eighths inch gypsum wallboard and a vapor retarder returned to the back of the header. The exterior assembly includes a metal soffit vent, metal trim, half-inch sheathing, and a three-coat stucco finish over wood blocking, with sealant, backer rods, and shims provided at joints.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
