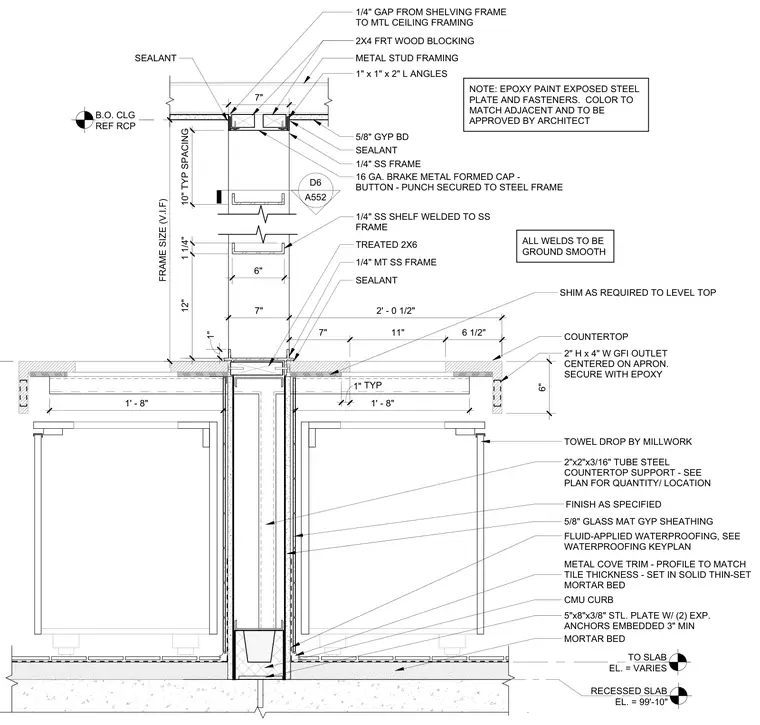

A commercial vanity and partition assembly anchors to a recessed concrete slab. A concrete masonry unit curb supports a two-inch by two-inch by three-sixteenths inch structural steel tube countertop support, shammed as required and secured with a five-inch by eight-inch by three-eighths inch steel plate with two expansion anchors embedded three inches minimum into a mortar bed. The assembly incorporates fluid-applied waterproofing, a metal cove trim set in a solid thin-set mortar bed matching the tile thickness, and a two-inch high by four-inch wide GFI outlet centered on the apron. Metal stud framing with five-eighths inch gypsum board and treated two-by-six wood blocking extends upward, terminating in a one-inch gap from the shelving frame to the metal ceiling framing with sealant and one-inch by one-inch by two-inch angle connections. A sixteen-gauge brake metal formed cap is button-punch secured to the steel frame, complemented by a one-quarter inch stainless steel frame and shelf welded flush with ground-smooth welds. Exposed steel plates and fasteners receive an epoxy paint finish matching adjacent surfaces.
TO SLAB EL. = VARIES RECESSED SLAB EL. = 99'-10" SHIM AS REQUIRED TO LEVEL TOP 2"x2"x3/16" TUBE STEEL COUNTERTOP SUPPORT - SEE PLAN FOR QUANTITY/ LOCATION 5"x8"x3/8" STL. PLATE W/ (2) EXP. ANCHORS EMBEDDED 3" MIN 2" H x 4" W GFI OUTLET CENTERED ON APRON. SECURE WITH EPOXY METAL COVE TRIM - PROFILE TO MATCH TILE THICKNESS - SET IN SOLID THIN-SET MORTAR BED COUNTERTOP FLUID-APPLIED WATERPROOFING, SEE WATERPROOFING KEYPLAN 6" 1" TOWEL DROP BY MILLWORK 1 1/4" 12" 6" 1/4" MT SS FRAME 1/4" SS FRAME B.O. CLG REF RCP FRAME SIZE (V.I.F) 1/4" SS SHELF WELDED TO SS FRAME 7" 11" 6 1/2" 7" 2' - 0 1/2" 1" 7" METAL STUD FRAMING 5/8" GYP BD MORTAR BED TYP CMU CURB 5/8" GLASS MAT GYP SHEATHING FINISH AS SPECIFIED SEALANT TREATED 2X6 ALL WELDS TO BE GROUND SMOOTH NOTE: EPOXY PAINT EXPOSED STEEL PLATE AND FASTENERS. COLOR TO MATCH ADJACENT AND TO BE APPROVED BY ARCHITECT D6 A552 1' - 8" 1' - 8" 1" x 1" x 2" L ANGLES 2X4 FRT WOOD BLOCKING 1/4" GAP FROM SHELVING FRAME TO MTL CEILING FRAMING SEALANT SEALANT 10" TYP SPACING 16 GA. BRAKE METAL FORMED CAP - BUTTON - PUNCH SECURED TO STEEL FRAME
