A concrete masonry unit partition bears directly on a concrete slab and is fully grouted with loose masonry fill. Vertical and horizontal reinforcement is installed as specified in the structural and CMU schedules, anchored with dowels extending from the slab. The wall achieves a 3-hour fire rating under UL design references U904 and U905.

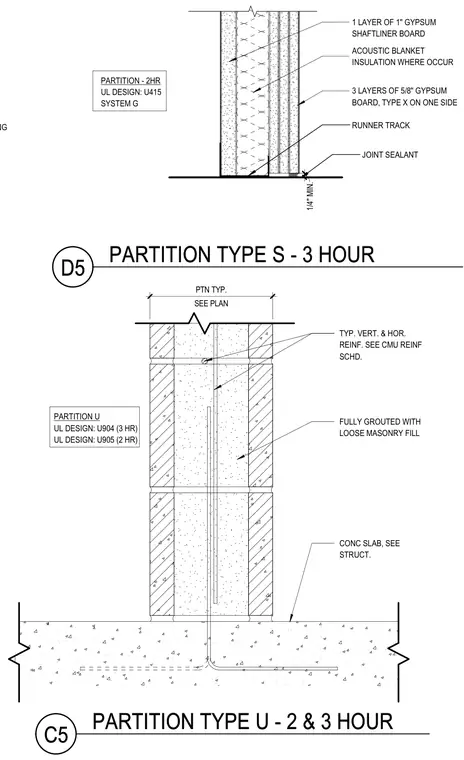

NON-STRUCTURAL METAL FRAMING PARTITION - 2HR UL DESIGN: U415 SYSTEM G 1/4" MIN. JOINT SEALANT ACOUSTIC BLANKET INSULATION WHERE OCCUR RUNNER TRACK 3 LAYERS OF 5/8" GYPSUM BOARD, TYPE X ON ONE SIDE 1 LAYER OF 1" GYPSUM SHAFTLINER BOARD SEE PLAN PTN TYP. TYP. VERT. & HOR. REINF. SEE CMU REINF SCHD. CONC SLAB, SEE STRUCT. FULLY GROUTED WITH LOOSE MASONRY FILL PARTITION U UL DESIGN: U904 (3 HR) UL DESIGN: U905 (2 HR) D5 PARTITION TYPE S - 3 HOUR C5 PARTITION TYPE U - 2 & 3 HOUR
