Architectural · A-3BPP9

Evacuation and Maximum Occupancy Sign Details

Elements

About this detail

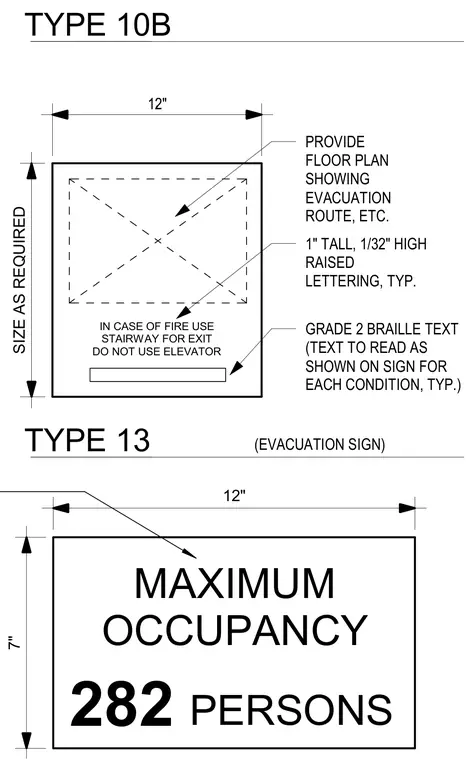

Standard life safety signage details including a Type 10B evacuation sign and a Type 13 maximum occupancy sign. The Type 10B sign measures twelve inches wide with height as required, featuring a floor plan for evacuation routes, one-inch tall by one-thirty-second inch high raised lettering, and Grade 2 Braille text. The Type 13 maximum occupancy sign measures twelve inches wide by seven inches high, displaying maximum occupancy counts and required fire exit phrasing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
