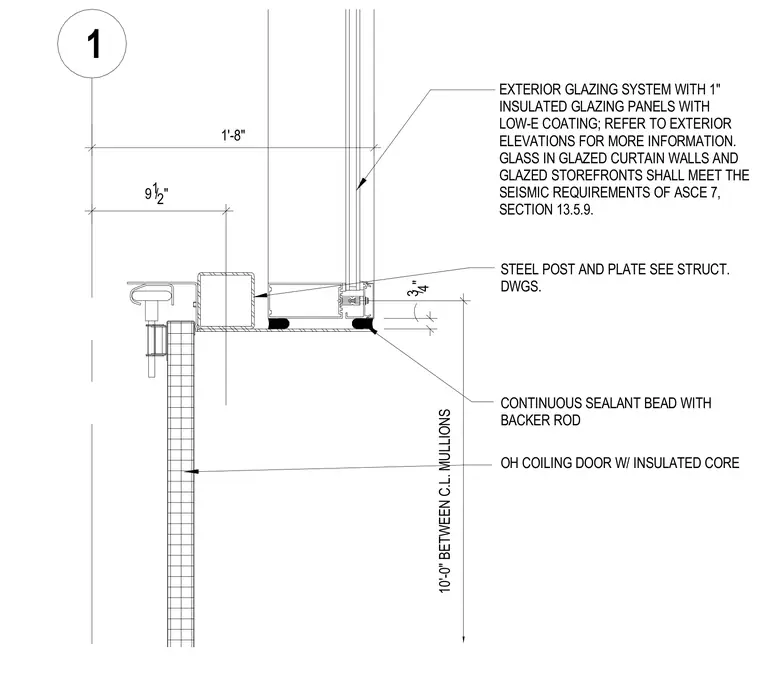

This horizontal plan detail shows an overhead coiling door with an insulated core mounted adjacent to an exterior glazing system. The glazing system features one-inch insulated glazing panels with low-E coating framed by aluminum profiles. A steel post and plate assembly supports the adjacent wall construction, sized per structural drawings. A continuous sealant bead with a backer rod seals the joint between the coiling door guide and the adjacent frame. Dimensions indicate a distance of 10'-0" between centerlines of mullions.
3/4" 1'-8" 10'-0" BETWEEN C.L. MULLIONS 9 1 /2" 1 STEEL POST AND PLATE SEE STRUCT. DWGS. OH COILING DOOR W/ INSULATED CORE CONTINUOUS SEALANT BEAD WITH BACKER ROD EXTERIOR GLAZING SYSTEM WITH 1" INSULATED GLAZING PANELS WITH LOW-E COATING; REFER TO EXTERIOR ELEVATIONS FOR MORE INFORMATION. GLASS IN GLAZED CURTAIN WALLS AND GLAZED STOREFRONTS SHALL MEET THE SEISMIC REQUIREMENTS OF ASCE 7, SECTION 13.5.9.
