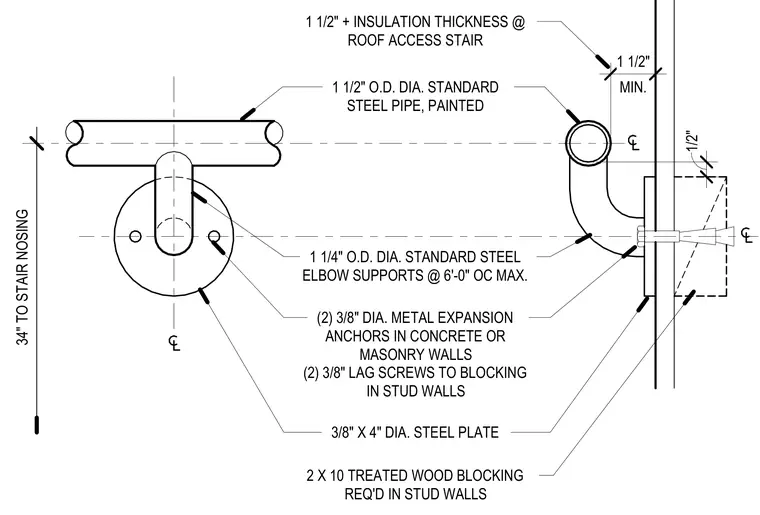

A painted one and a half inch outer diameter standard steel pipe handrail is supported by one and a quarter inch outer diameter standard steel elbow supports spaced at a maximum of six feet on center. The elbow connects to a three-eighths inch thick by four-inch diameter steel mounting plate. For concrete or masonry walls, the assembly is anchored using two three-eighths inch diameter metal expansion anchors. For stud walls, the plate is secured with two three-eighths inch lag screws fastened to required two-by-ten treated wood blocking. The handrail maintains a height of thirty-four inches to the stair nosing and a one and a half inch minimum clearance from the wall surface.
1/2" MIN. 1 1/2" 1 1/2" O.D. DIA. STANDARD STEEL PIPE, PAINTED 1 1/2" + INSULATION THICKNESS @ ROOF ACCESS STAIR 34" TO STAIR NOSING 1 1/4" O.D. DIA. STANDARD STEEL ELBOW SUPPORTS @ 6'-0" OC MAX. (2) 3/8" DIA. METAL EXPANSION ANCHORS IN CONCRETE OR MASONRY WALLS (2) 3/8" LAG SCREWS TO BLOCKING IN STUD WALLS 3/8" X 4" DIA. STEEL PLATE 2 X 10 TREATED WOOD BLOCKING REQ'D IN STUD WALLS
