A roof curb flashing assembly is set over rigid insulation. A continuous sheet of reinforced membrane wraps around the curb, secured with a bonding adhesive and a seam fastening plate spaced twelve inches on center. A metal cap or counter flashing is installed at the top of the curb per the manufacturer's instructions. Cut-edge sealant is applied along the membrane edges on the horizontal roof surface. Outside corners are detailed per manufacturer specifications.

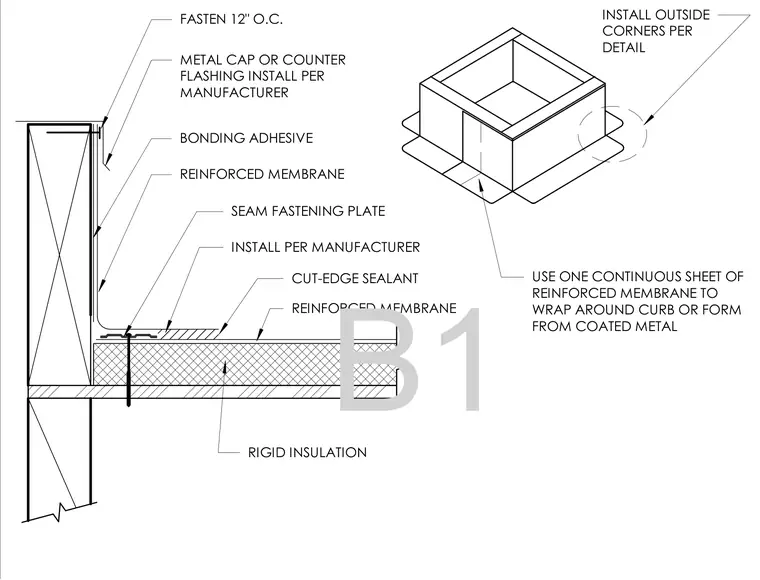

INSTALL OUTSIDE CORNERS PER DETAIL RIGID INSULATION REINFORCED MEMBRANE CUT-EDGE SEALANT INSTALL PER MANUFACTURER SEAM FASTENING PLATE REINFORCED MEMBRANE BONDING ADHESIVE METAL CAP OR COUNTER FLASHING INSTALL PER MANUFACTURER FASTEN 12" O.C. USE ONE CONTINUOUS SHEET OF REINFORCED MEMBRANE TO WRAP AROUND CURB OR FORM FROM COATED METAL B1
