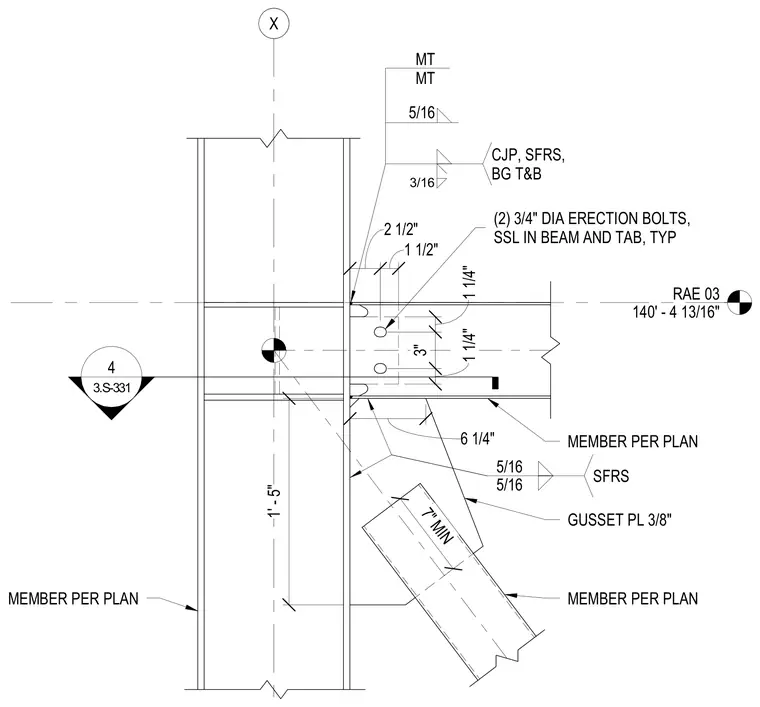

A structural steel beam connects to a vertical column member using a shear tab secured with two three-quarter inch diameter erection bolts and slot-hole details. A diagonal brace member frames into the joint via a three-eighths inch gusset plate welded to the column and beam assembly. Complete joint penetration and fillet welds of three-sixteenths and five-sixteenths inch sizes secure the plates to the main structural sections per the engineering design. Special seismic force resisting system designations apply to the connection welds and members.
RAE 03 140' - 4 13/16" X 4 3.S-331 (2) 3/4" DIA ERECTION BOLTS, SSL IN BEAM AND TAB, TYP 1 1/2" 2 1/2" 1 1/4" 3" 1 1/4" 1' - 5" 7" MIN 6 1/4" GUSSET PL 3/8" 5/16 5/16 SFRS MEMBER PER PLAN MEMBER PER PLAN MEMBER PER PLAN CJP, SFRS, BG T&B 3/16 5/16 MT MT
